X axis travel:70(mm)
Y axis travel:480(mm)
Z axis travel:180 (mm)

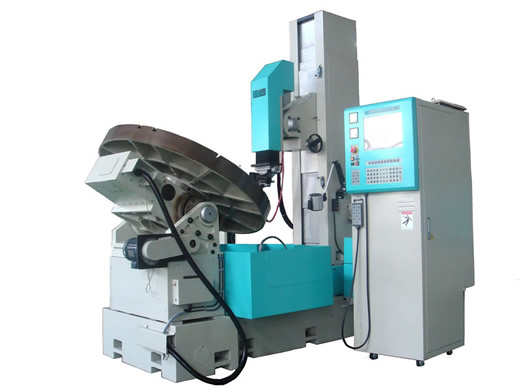

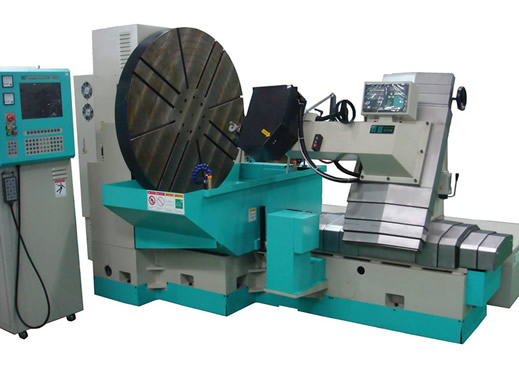

Brief introduction of CJ580T:
1.Latest PC-based industrial use computer
2.Friendly user interface
3.Suitable for machining disc moulds, segmented moulds and various tire moulds
|
Item |
Unit |
CJ-580T |
|
|---|---|---|---|
|
X-axis turning angle |
degree |
0-90 |
|
|
Table travel (X1-axis) |
mm |
70 |
|
|
Table travel (Y-axis) |
mm |
480 |
|
|
Table travel (Z-axis) |
mm |
180 |
|
|
Quill travel (Z1-axis) |
mm |
890 |
|
|
Worktable dimension |
mm |
1300 |
|
|
C-axis angle |
degree |
360 |
|
|
W-axis(Z-axis F/B) revolving angle |
degree |
Front 30°/Back 30° |
|
|
W1-axis(Z-axis L/R) revolving angle |
|
Left 30°/Right 30° |
|
| X-axis resolution | mm |
0.05 |
|
| Y-axis resolution | mm |
0.001 |
|
| Z-axis resolution | mm |
0.001 |
|
| C-axis resolution | degree |
0.001 |
|
| Control type (C-axis) |
|
Semi-loop |
|
| Max. Electrode weight | kg |
40 |
|
| Max. workpiece weight | kg |
800 |
|
| Max. workpiece diameter | mm |
1200 |
|
| Max. workpiece thickness | mm |
470( with jigs) |
|
| Work tank inner dimensions (WxDxH) | mm |
1264x764x427 |
|
| Oil tank dimensions (WxDxH) | mm |
2450x800x440 |
|
| Max.Capacity of dielectric fluid | liter |
800 |
|
|
Machine unit weight( including indexing table) |
Kg |
4500 |
|
